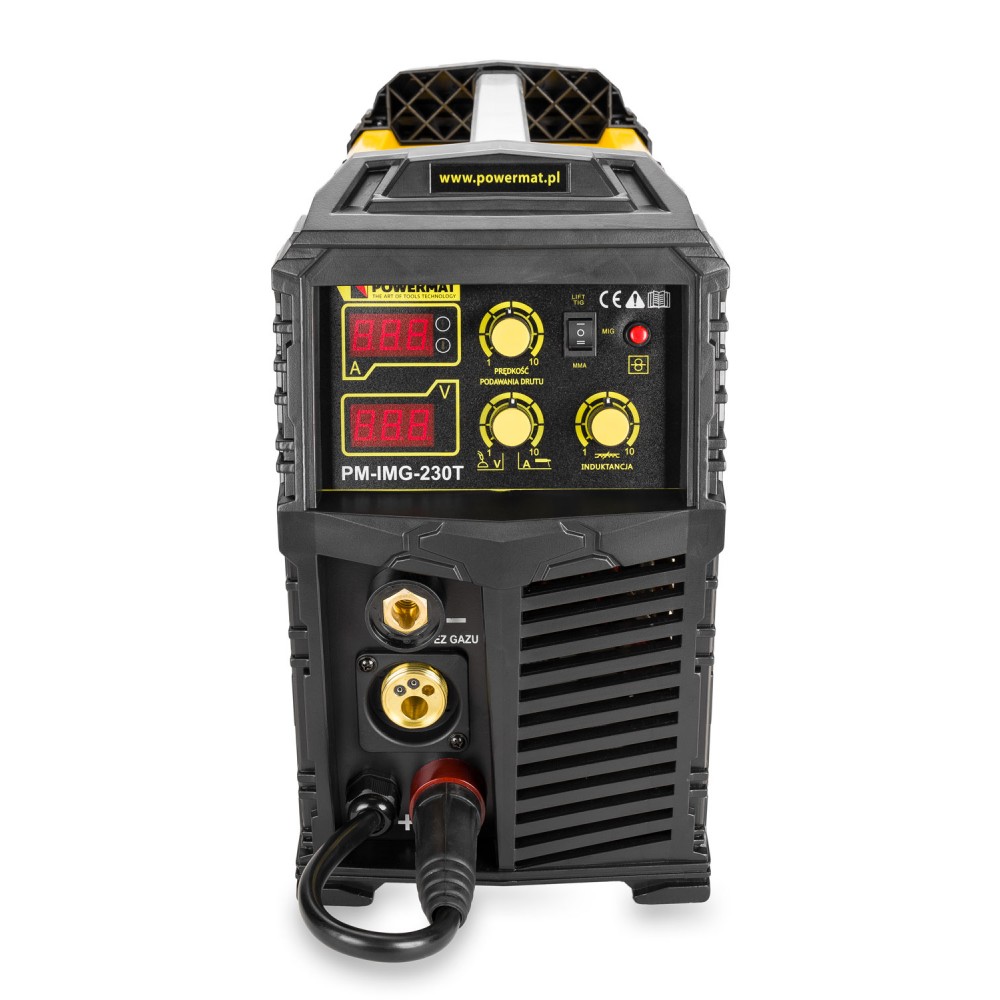

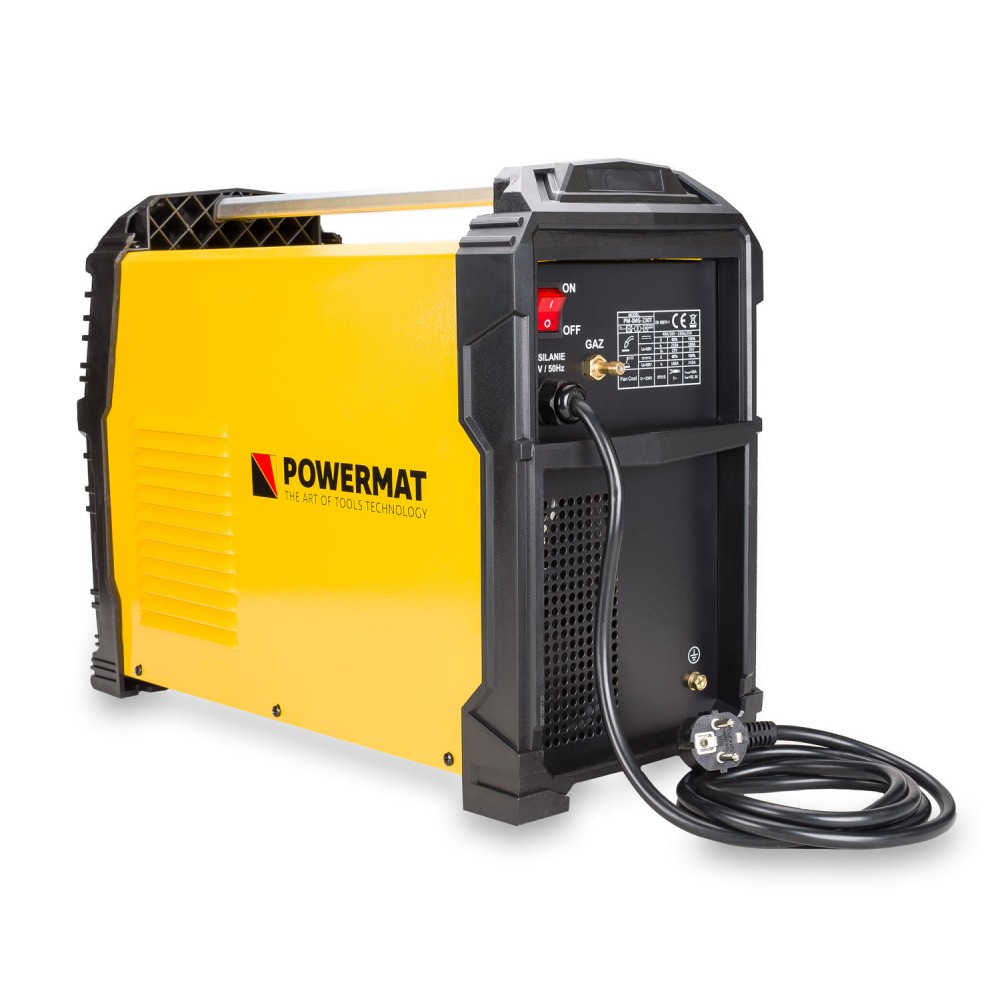

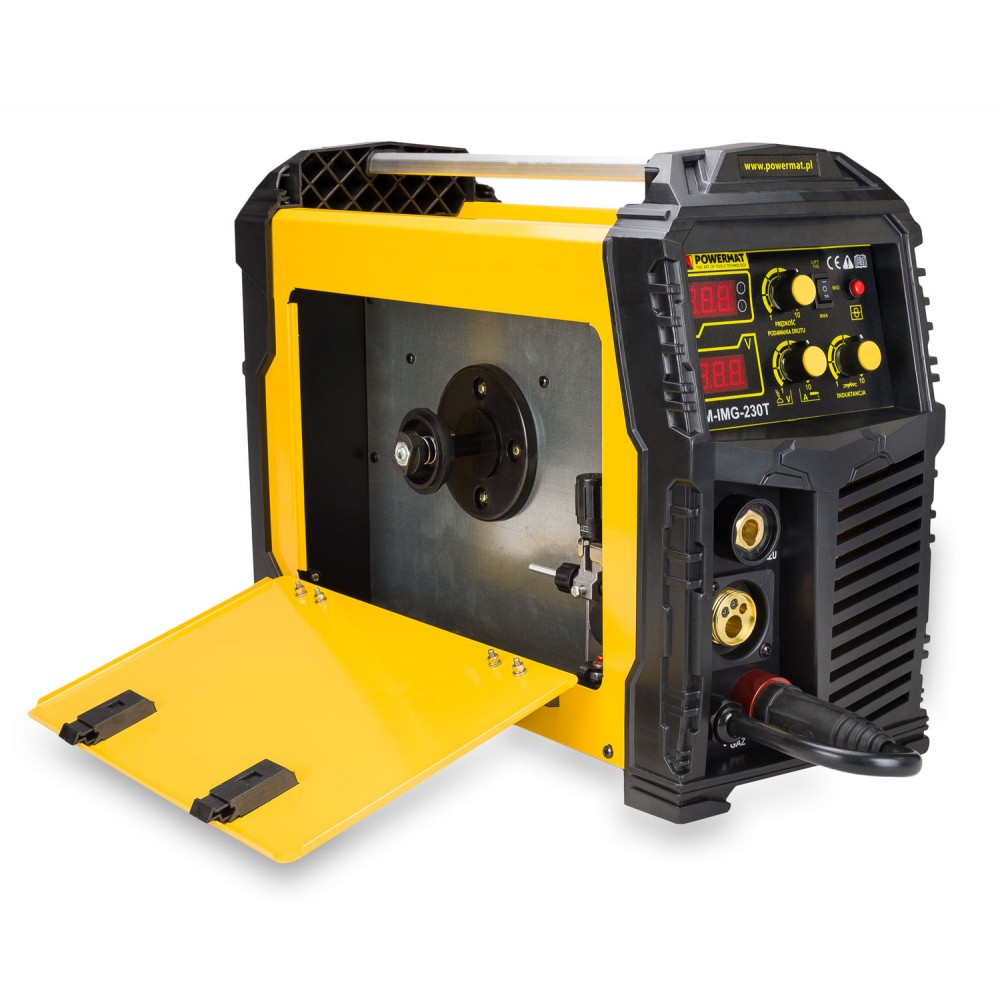

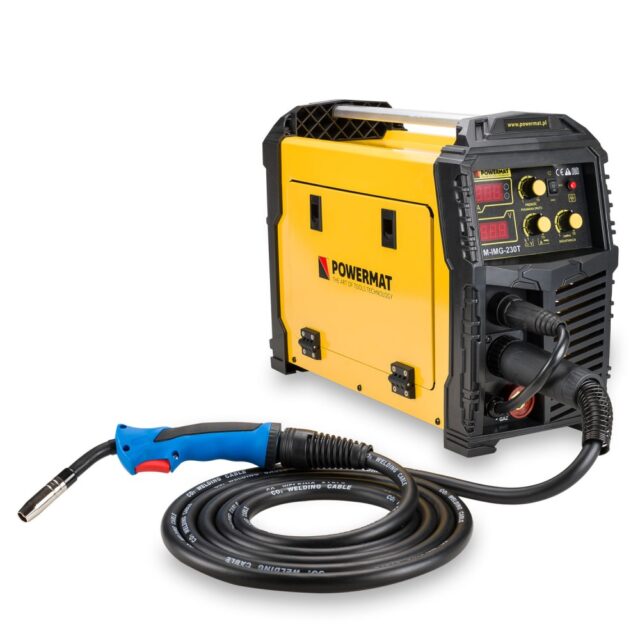

Traatkeevitus MIG / MAG / TIG / MMA inverter 230A

model: PM-IMG-230T
power supply: 230V / 50Hz
MIG / MAG power consumption: 6.1kVA
power consumption TIG / MMA: 5.8kVA
welding methods: MIG / MAG / FCAW / MMA (electrode) / TIG
MIG / MAG welding current range: 40 – 230A
TIG / MMA welding current range: 20 – 180A
welding current 100% duty cycle: (MIG / MAG – 180A)
welding current 100% duty cycle: (TIG / MMA – 143A)
welding current 60% duty cycle: (MIG / MAG – 230A)
welding current 60% duty cycle: (TIG / MMA – 180A)
supported wire diameters: 0.6 / 0.8 / 1.0mm
supported electrode diameters: 2.5mm – 4mm

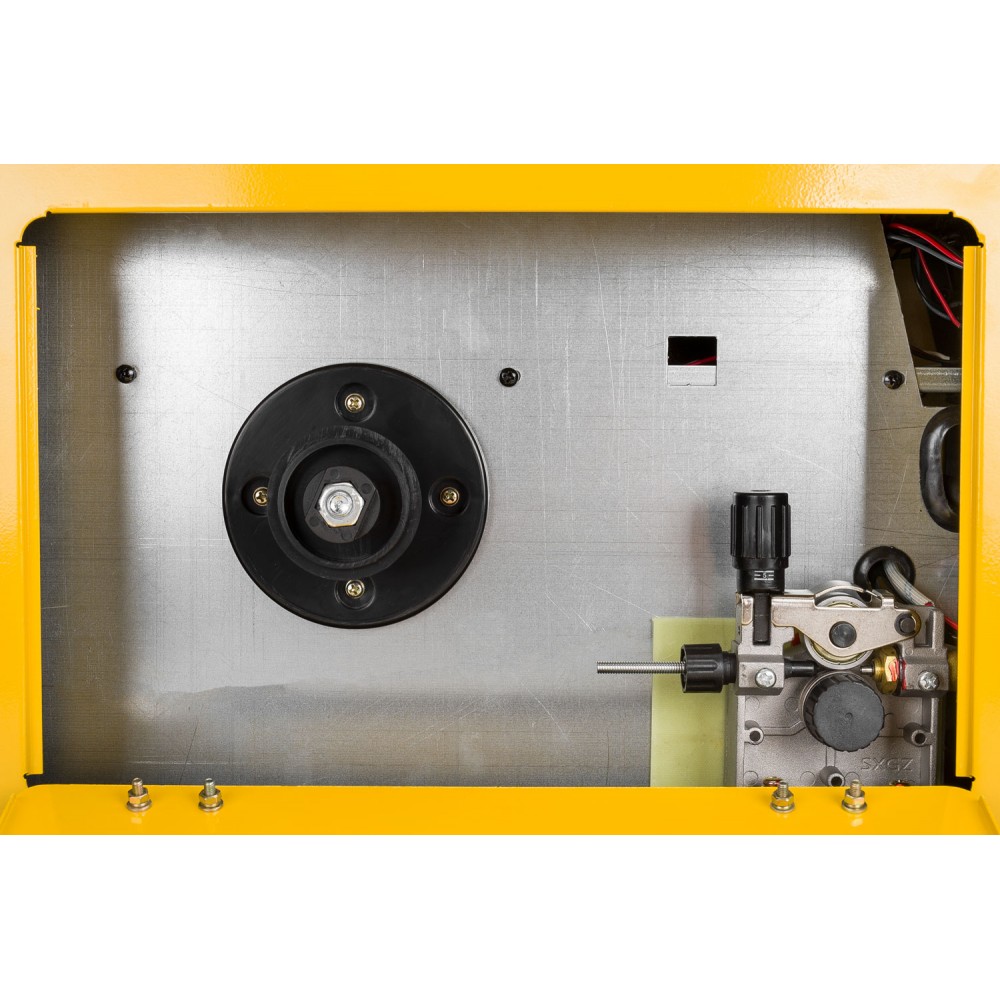

supported wire spools: max. up to 5 kg

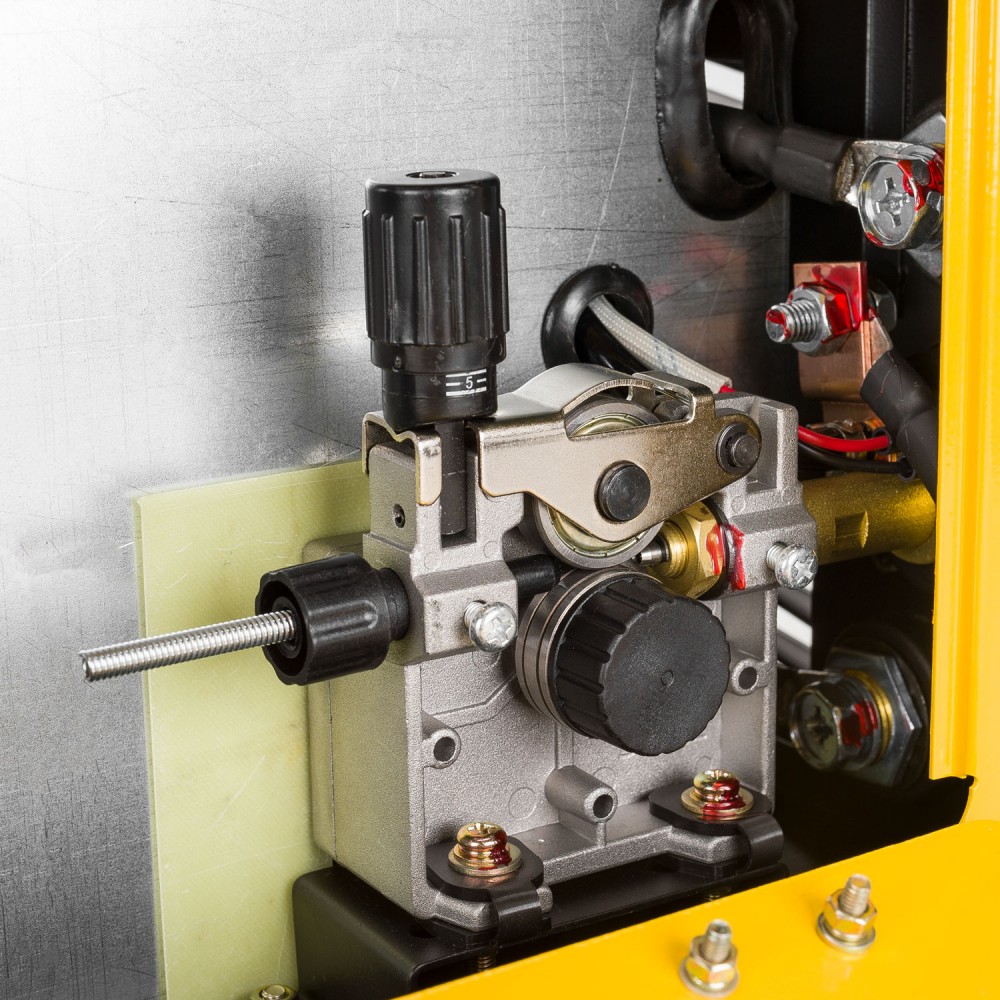

wire feeder: 2 – roll (internal)
outer diameter of the feed roller: 30 mm
internal diameter of the feed roller: 10 mm (with indentation)
feed roller thickness: 10 mm
insulation class: F.
degree of protection: IP21S
dimensions: 51 x 22 x 38 cm [length / width / height]
net weight; 12.5 kg
EQUIPMENT:

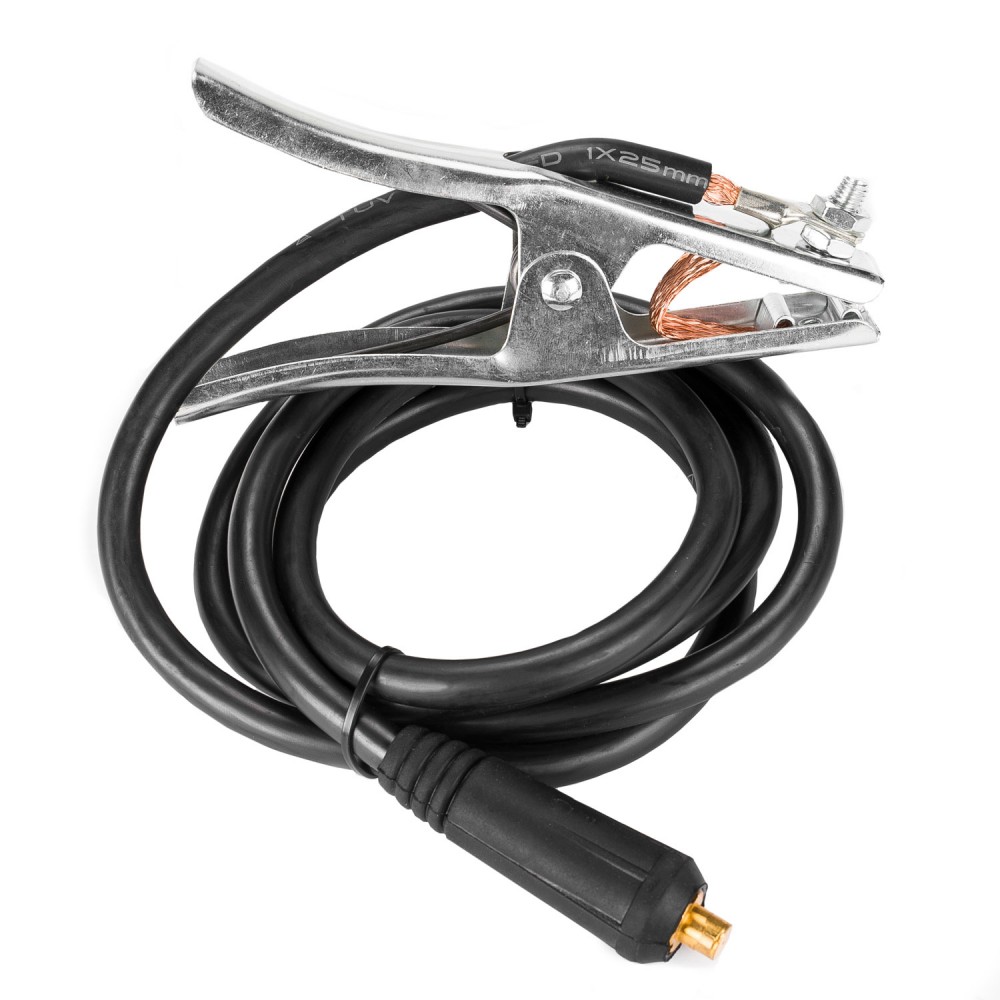

mass holder (-): – 2m

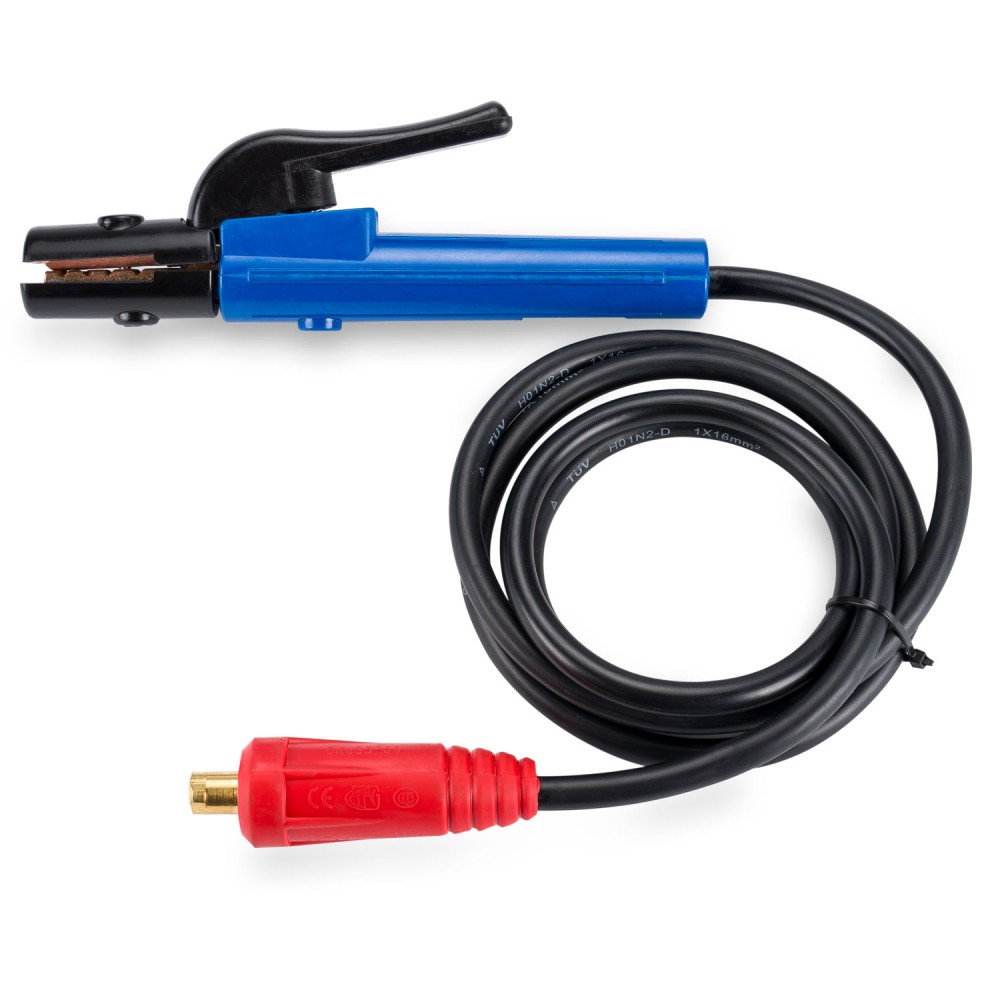

MMA electrode holder (+): – 2.1 m

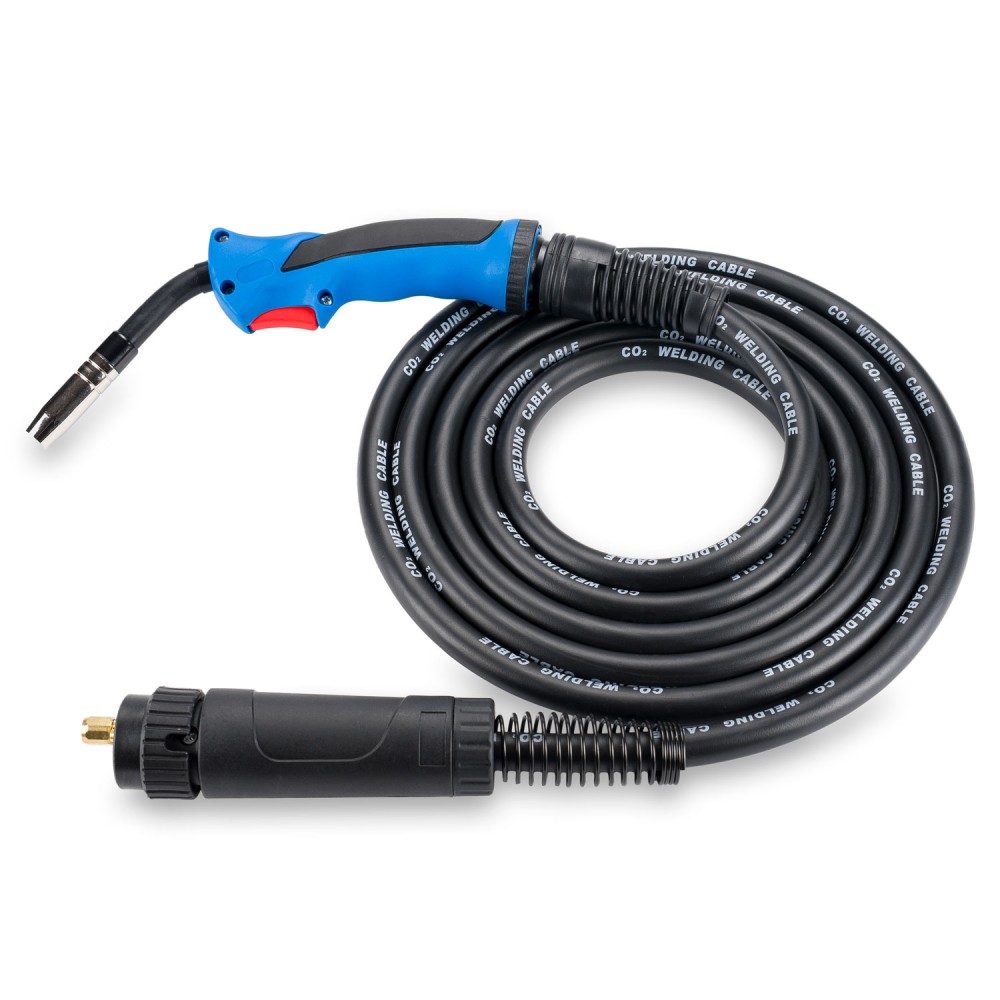

EURO MIG / MAG grip: 4.2 m
double-sided roll 0.8 / 1.0mm
